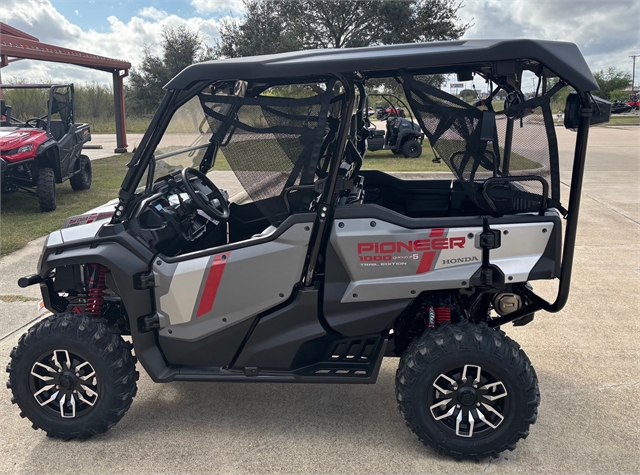

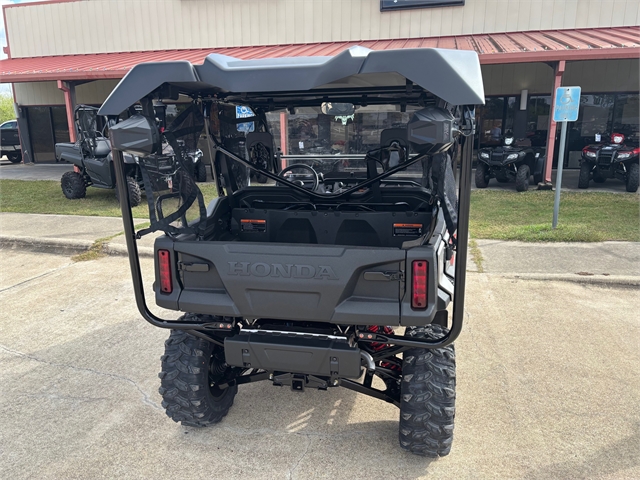

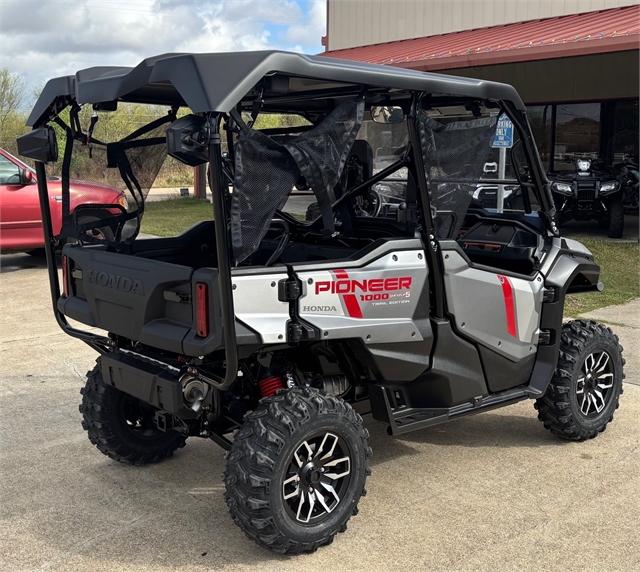

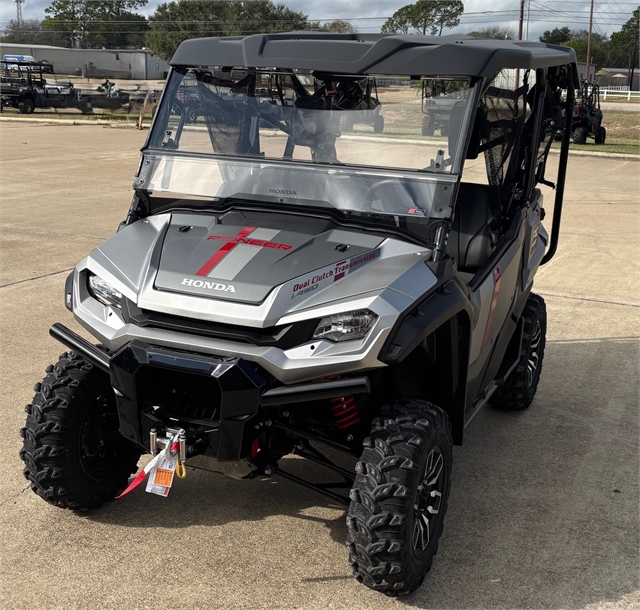

2025 Honda Pioneer 1000-5 Trail Special Edition

Stock #900435
MSRP: $26,599 USD
Pre-Order Now!
Hi, my name is and I'm interested in this 2025 Honda Pioneer 1000-5 Trail Special Edition . I'm in the area and you can reach me at or by phone at

Available Color

  • Matte Gray Metallic
  • Status:
    New
  • Vehicle:
    2025 Honda Pioneer 1000-5 Trail Special Edition
  • VIN:
    1HFVE0496S4900435
  • Color:
    Gray
  • Stock Number:
    900435
  • Title:
    Clear
  • Location:
    Dale's Fun Center, Victoria, TX 77904
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Brand Name:
    SSV Works®
  • Number Of Speakers:
    5

BRAKES

  • Front Brake Diameter (in):
    8.3
  • Front Brake Diameter (mm):
    210
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.3
  • Rear Brake Diameter (mm):
    210
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front / Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    4

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    44
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.96
  • Stroke (mm):
    75.1
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • CV Boot Cover:
    Yes
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    5
  • Seat Height (in):
    33.8
  • Seat Height (mm):
    858.5
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    226.8
  • Bed Capacity (lbs.):
    1000
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Number Of Cupholders:
    6

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Brand Name:
    Fox®
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    10.6
  • Front Travel (mm):
    268
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox®
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    10
  • Rear Travel (mm):
    254

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    7.9
  • Fuel Capacity (l):
    29.9
  • Fuel Capacity Reserve (gal):
    1.7
  • Fuel Capacity Reserve (l):
    6.4
  • Ground Clearance (in):
    12.2
  • Ground Clearance (mm):
    309.9
  • Height (in):
    76.5
  • Height (mm):
    1943.1
  • Length (ft):
    9.93
  • Length (ft/ft):
    9
  • Length (ft/in):
    11.2
  • Length (in):
    119.2
  • Length (mm):
    3027.7
  • Payload Capacity (kgs):
    453.6
  • Payload Capacity (lbs):
    1000
  • Towing Capacity (kgs):
    1134
  • Towing Capacity (lbs):
    2500
  • Turning Radius (ft):
    13.8
  • Wet Weight (kg):
    806
  • Wet Weight (lbs):
    1777
  • Wheelbase (in):
    80.2
  • Wheelbase (mm):
    2037.1
  • Width (in):
    63
  • Width (mm):
    1600.2

TOWING & HAULING

  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    6
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Armstrong Dirt Master 2.0
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Armstrong Dirt Master 2.0
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Armstrong
  • Wheels Composition:
    Aluminum
